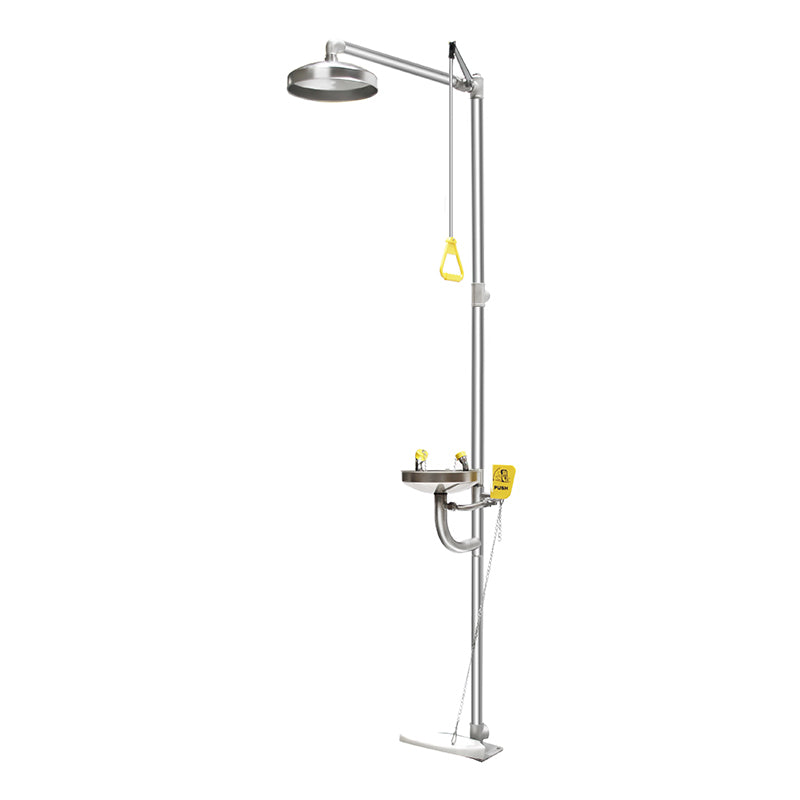

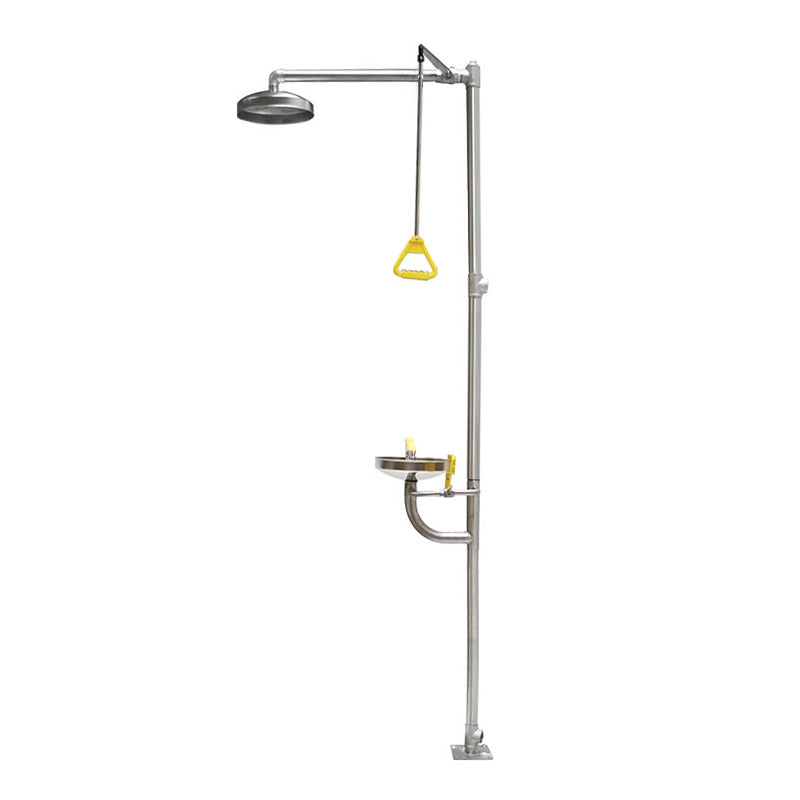

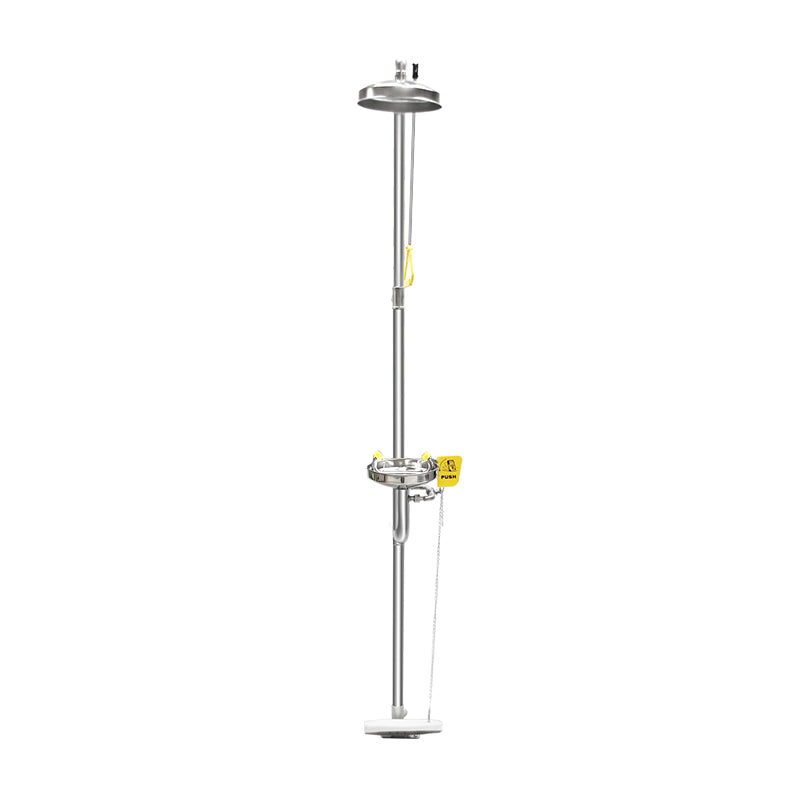

Emergency Combination Safety Shower with Eye Wash Station

Ensure rapid response in critical situations with the Shield Right Stainless Steel Emergency Safety Shower and Eye Wash Station – a reliable, ANSI Z358.1-2014 compliant solution for chemical exposure in industrial and laboratory environments.

Built from heavy-duty SS304 stainless steel, this combination unit provides a full-body drench shower and dual-nozzle eye/face wash system for comprehensive decontamination. Engineered for harsh environments, it resists corrosion from weak acids and alkalis, making it ideal for demanding workplaces.

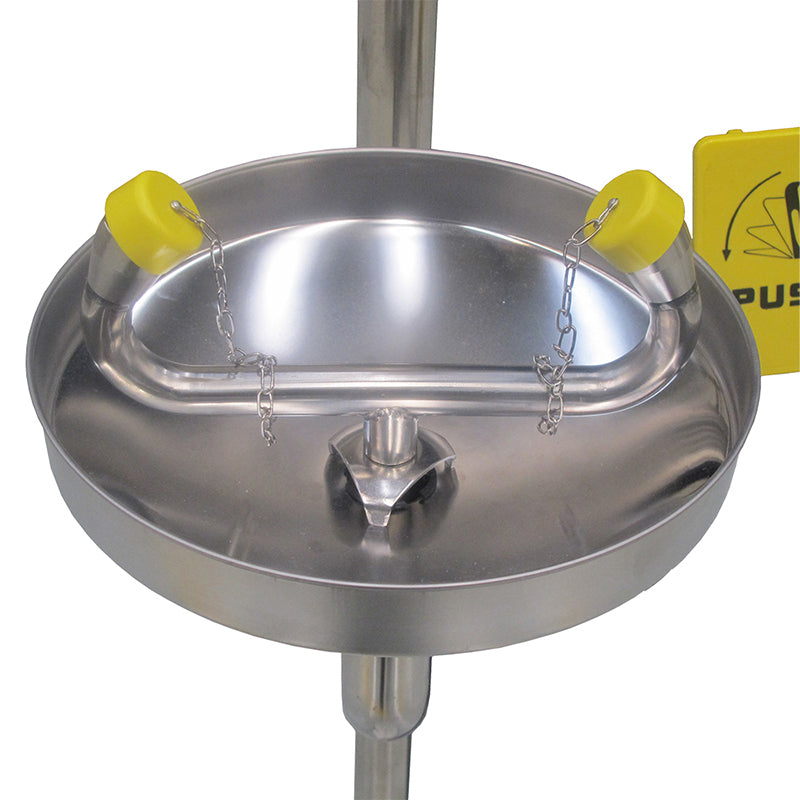

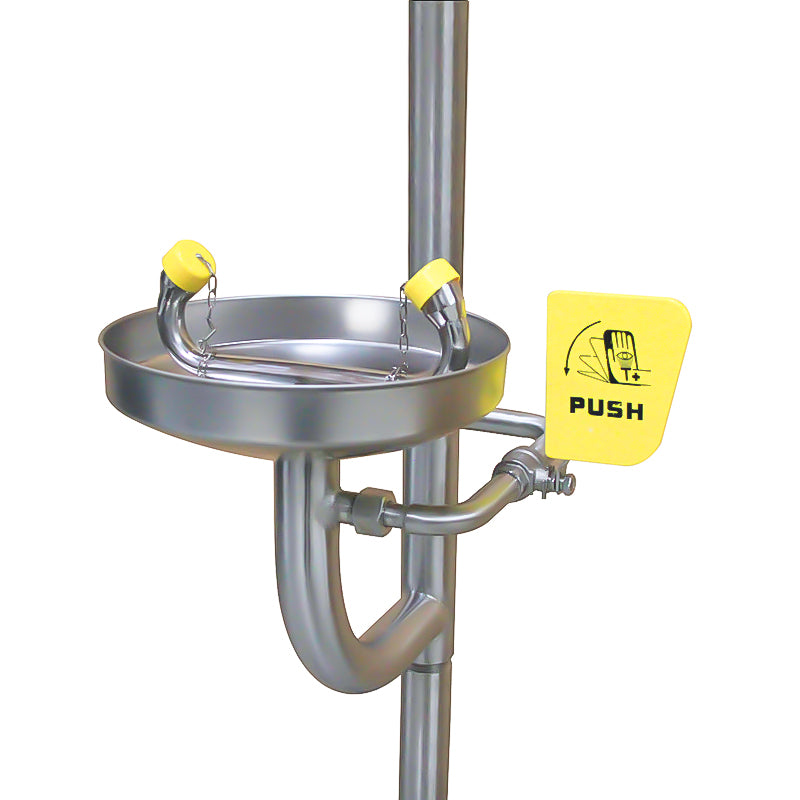

The unit features intuitive, hands-free operation with a high-visibility pull rod for the overhead shower and a convenient foot pedal and push plate for the eye wash basin. Designed for fast installation and ease of use, it includes a built-in drainage bowl to prevent pooling and contamination.

Key Specifications & Features:

• Material: Industrial-grade SS304 stainless steel

• Eye Wash Flow Rate: ≥11.4 L/min

• Shower Flow Rate: ≥75.7 L/min

• Operation:

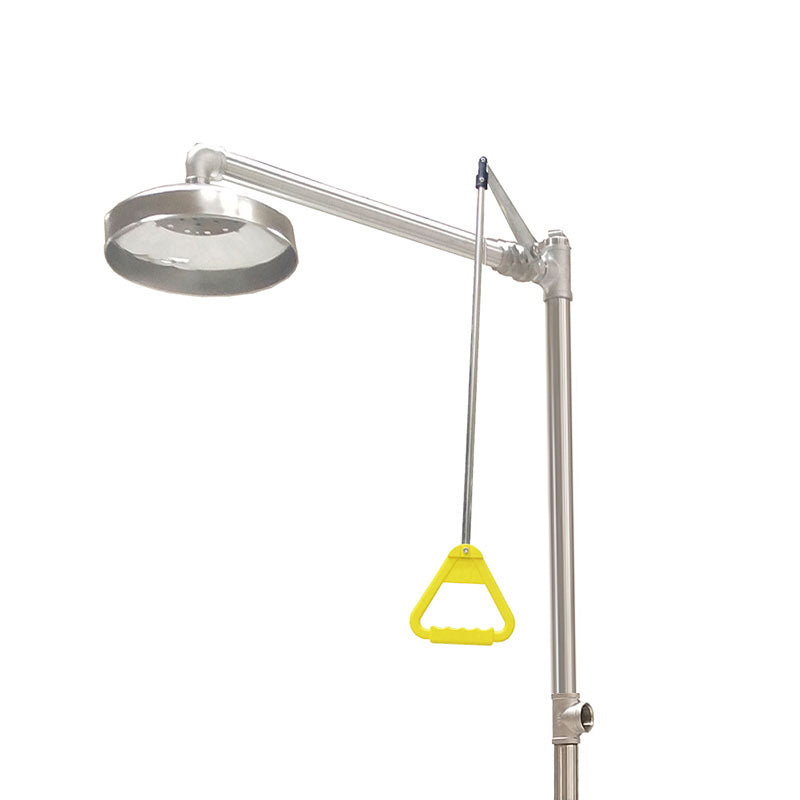

  • Shower: Pull rod activation

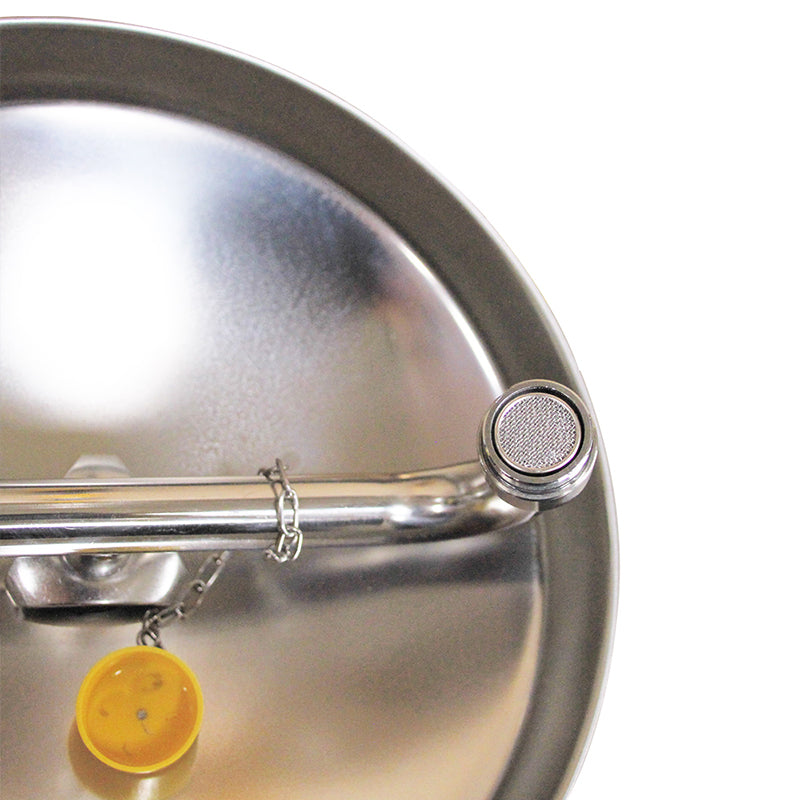

  • Eye Wash: Foot pedal and push plate

• Integrated 10” Collection Bowl: Captures wastewater to maintain a clean and safe work area

• Compliant With: ANSI Z358.1-2014 Emergency Eyewash and Shower Equipment Standard

• Ideal For: Laboratories, manufacturing plants, chemical handling zones, mining sites, and food/pharma industries

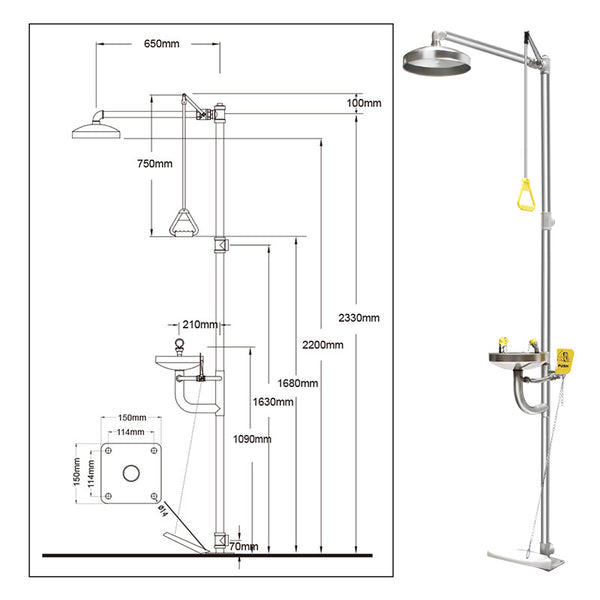

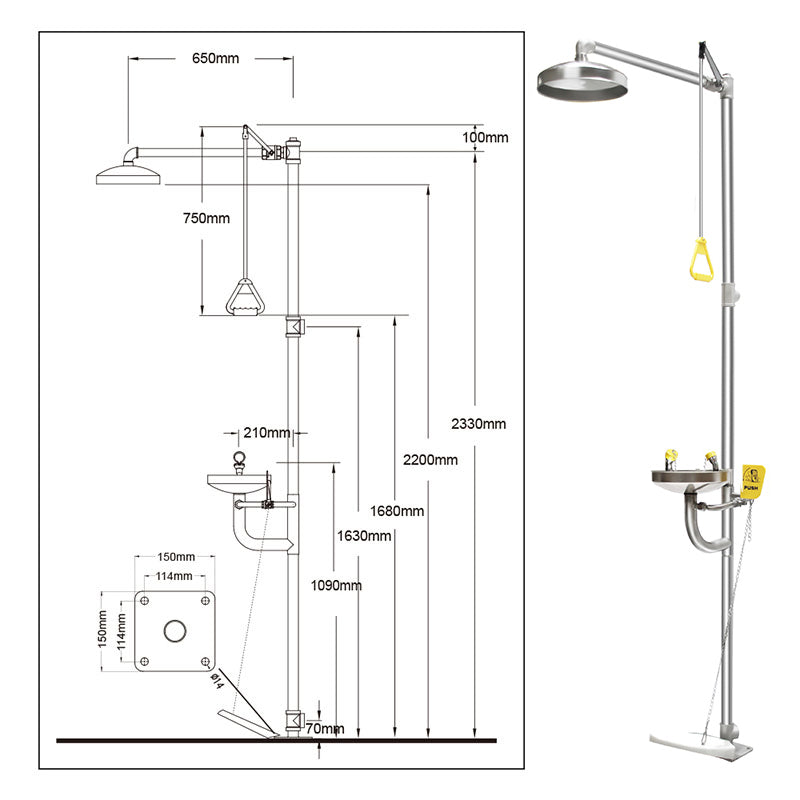

• Install Requirements: Floor mounted, minimum water pressure 0.2–0.6MPa

• Connections: 1 ¼” FNPT inlet & drain
